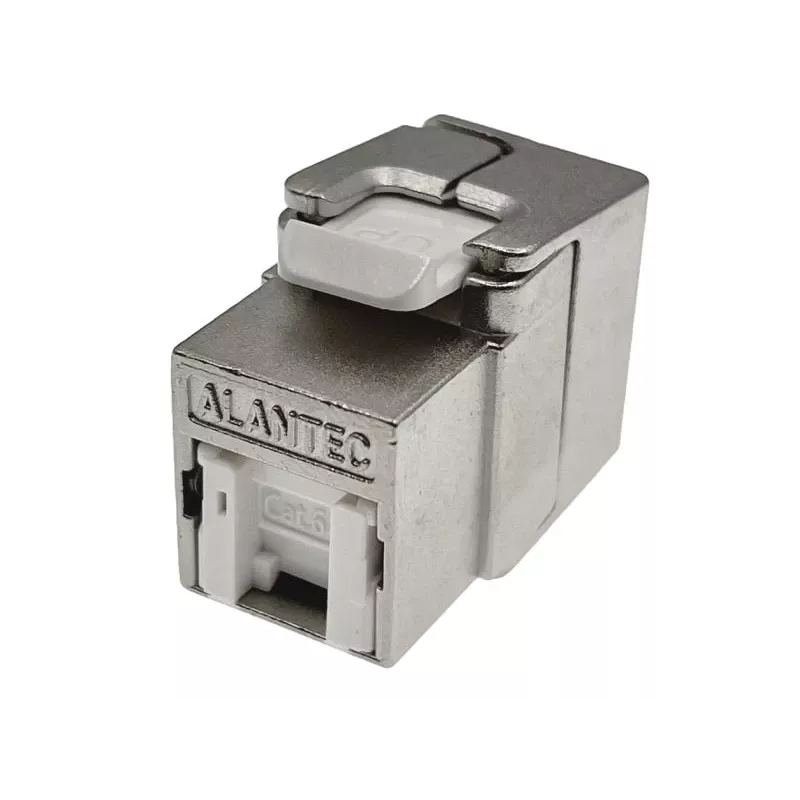

Alantec MB004-1 RJ45 toolless STP cat.6 PoE+ keystone module ALANTEC Plus - Enhanced transmission performance

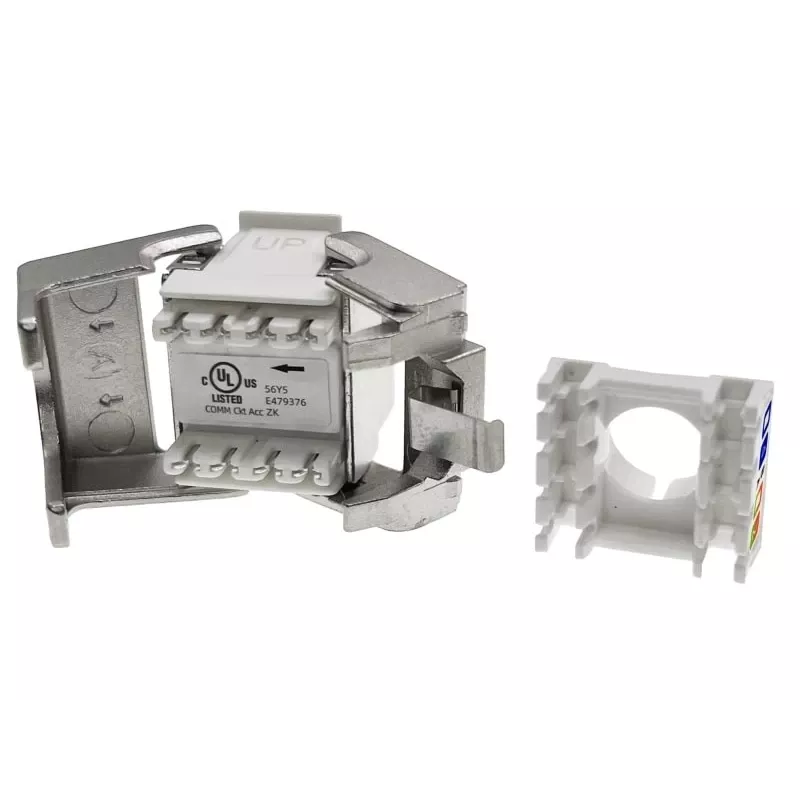

Description: Alantec keystone RJ45 cat.6 PoE+ STP Tool-free, fully shielded (STP) ALANTEC keystone transmission sockets are used to build both subscriber points and patch fields in internal installations, horizontal and vertical ICT networks, at risk of electromagnetic interference. The tool-free solution allows you to assemble the entire transmission path without the need for special tools. The installation process is quick and comfortable (according to our experience, making such sockets takes 1/3 of the time of a standard execution based on a tool system). According to the installer's preferences, the sockets can also be terminated using the classic method, using the IDC 110/LSA impact tool. Thanks to the use of special, universal fixings, they can be mounted in any elements, such as: empty patch panels, wall and floor boxes, etc. An important design advantage: plugging in the RJ11, RJ12 telephone plugs does not damage the socket, the special design causes that the connector pins are not deformed. Tested in the independent research laboratory INTERTEK (USA). | Connector: RJ-45 | Quantity in unit package: 1 | Other features: General: Category: 6 Class: E (250MHz standard) with extended characteristics up to 475 MHz / 1 Gbps Shielding: yes Type: toolless (however, a dedicated LSA NI004 cutter is recommended for module termination) Body: Material: zinc die-cast, complying with EMC requirements in accordance with EN 55022 Socket: Durability to standards: > 750 cycles Durability according to tests: > 1000 cycles Contact material: phosphor bronze Contact coating: 50 inch gold layer on 40 inch nickel layer Contact force: 100 g per contact Disengagement force: 50N for 60s Slotted connector: Sequence: 568A/B Blade material: phosphor bronze with 100 inch tin layer Accepts conductors: 22-24AWG Body: flame retardant plastic, UL 94 V-0 compliant PCB board: Material: 1.6 mm thick FR4 laminate Electrical parameters: Max. current value: 1,5 A Insulation resistance: 500 M @ 100 Vdc Voltage resistance: 1000 Vac RMS @60Hz for 60s Contact resistance: 20 m IDC knife resistance: 2.5 m PoE power supply: Type: PoE+ / 802.3 at type 2 Temperature range: Storage: -40oC to +70oC Operation: -10oC to +60oC Humidity: Maximum: 93%
